Published on Resilience (http://www.resilience.org)Plundering the planet: a report to the Club of Rome
Published by Cassandra's legacy on 2013-10-09Original article: http://cassandralegacy.blogspot.com/2013/10/plundering-planet-report-to-club-of-rome.html by Ugo Bardi
Now, you have probably also heard that this study was "wrong," that is,
that it had made wrong predictions, that it was based on bad data and flawed
models, and similar accusations. That was the result of a wave of criticism, a
true tsunami I'd say, that engulfed the book and its authors after the study was
published. The authors were accused of being not just wrong, but part of a
global conspiracy aimed at enslaving humankind and exterminating the colored
races (I am not kidding, that was said several times).
However, if there
was such a harsh reaction to the book, it was also because it went to the core
of some of the basic assumptions of our society, of our deeply held belief that,
somehow, not only growth is always good, but that we can keep growing forever.
But the book said that it wasn't possible. And it didn't say just that, it said
that the limits to growth were to appear in a time span that was not of
centuries, but just of decades. Below, you can see the main results of the 1972
study, the run that was called the "base case" (or "standard run"). The
calculations were redone in 2004, finding similar results.
So, you can understand the reasons of the rabid negative reaction to the
study. It is the same as what's happening today for Climate Change. We are all
human, when we see something we don't like, we tend to seek for ways to think it
is wrong. It is normal, but sometimes it becomes pathological, as it was the
case for this 1972 study. I described that story in a book of mine "Revisiting the limits to growth".
I am sure that
you are comparing, in your minds, these curves with the present economic
situation and you may wonder whether these old calculations may be turning out
to be incredibly good. But I would also like to say that these curves are not -
and never were - to be taken as specific predictions. No, the authors of the
study clearly said that they didn't want this to be a prophecy. These curves,
production, exploitation, etc..., they said, are the result of human action and
we could act - we could have acted - in such a way to avoid the collapse shown
by the scenario to become true. Unfortunately, nothing was done and this
scenario is dangerously turning out to be a prophecy.
So, how is it that
this model described so well the behavior of the world's economy (and may
describe its future)? Well, I discussed this in a longer talk of mine, but here I can just tell you that the
model was based on reasonable hypotheses, mostly common sense and the idea that
people try to maximize their short profits in the short run, which is a typical
assumption of most model in economics studies. But, rather than going into the
details I'll show here how the model compares with historical data and how it
can be considered, within limits, a predictive tool.

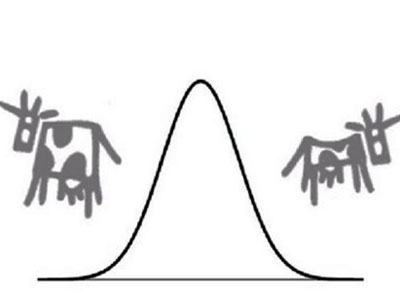

First, let me try to
summarize the "core" of the results of the model. These results, of course,
change depending on the initial assumptions, but there is a basic result that
keeps returning. What you get for such parameters as production or capital
accumulation, no matter how you arrange their elements, is a bell shaped curve;
the one that Hubbert had already proposed in 1956
This curve may be skewed forward or not, it may be irregular, but that
changes little on the fact that the downside slope is not as pleasant as the
rising side for those who live it.

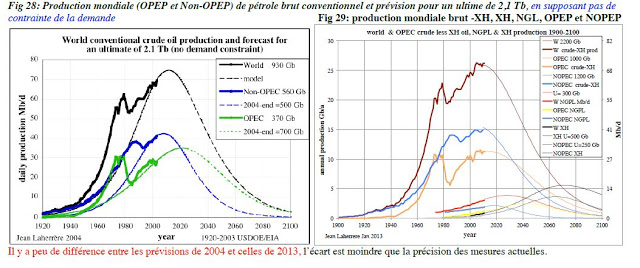

Now, there are many examples of the
tendency of real world systems to follow the bell shape curve, but let me show
you just one; a graph recently made by Jean Laherrere.
These are data for the world's oil production. As you can see, there are
irregularities and oscillations. But note how, from 2004 to 2013, that is nine
years, we have been following the curve: we move on a predictable path. This is
a very simple model; its only assumption is that production will follow a bell
shaped curve. And it does, of course within some limits. But note how already
nine years ago we could have predicted reasonably well today's oil
production.
Of course, there are other elements in this system. In the
figure on the right, you can see also the appearance of the so-called
"non-conventional" oil resources, which are following their own curve and which
are keeping the production of combustible liquids (a concept slightly different
from that of "crude oil) rather stable or slightly increasing. But, you see, the
picture is clear and the predictive ability of these models is reasonably good.
We just have to apply them with some care: political factors can change these
curve a lot and if you seek for a bell shaped curve in Saudi Arabian production
you won't find one. But that simply tells us something that we already know: the
Saudi government controls production on the basis of political factors rather
than on the basis of the search for immediate profits.
So, the model
reveals a tendency. It shows what normally happens in a system where people try
to exploit a non-renewable resources obtaining the maximum profit out of it. And
there is a reason for this behavior. What people do, obviously, is to exploit
first the "easy" resources. The less effort you make to extract and process a
resource the higher the profit you can have from it. So, imagine that you find a
lump of coal just lying on the ground. You pick it up, you take it home, you
burn it. It cost you almost no energy to do that - that's more or less what
people would do in the early times of the "coal revolution"; just picking up
coal at the ground level. But then, of course, they ran out of this easy coal.
They had to dig underground tunnels, and that involved a lot of work. Today, we
have arrived to something like this:
This image is from the cover of the book, "Plundering the Planet" and it
shows a gigantic wheel used to scrape coal out of the ground. It is somewhere in
Germany. Now, think for a moment how much energy it takes to make that wheel.
You have to mine iron ore, smelt it, transform it into steel, and finally cast
it into that huge thing. And that's not all - it is a lot of energy that you
need to operate that wheel, to carry the coal away from the mine, and so on. It
is difficult to think that we could be so smart to find ways to extract coal
without using this kind of equipment. Think of substituting that giant wheel
with an I-Pad!
Here, we have a fundamental point. You are mining coal in
order to get energy from coal. But you must spend energy in order to extract
coal. So, there is a trade off. You can measure how good your deal is by taking
the ratio of the energy obtained to the energy spent (EROI or EROEI). The higher
this ratio, the happier you are. That holds for all energy producing minerals,
oil, gas and the like, and you wouldn't be surprised to learn that this ratio
tends to go down as you keep exploiting your resource. That is, as you deplete

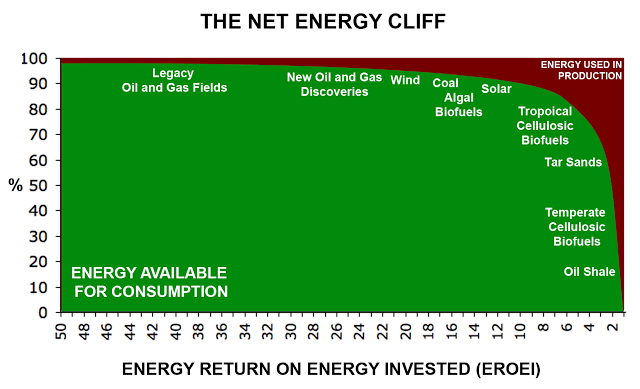

your resource, your yield goes down. It is shown in this figure (by David
Murphy).
You see that the fraction of "net" energy, that is the energy you gain, goes
down as you run out of the "good" resources. For EROEIs under about 20, the
problem is significant and below about 10 it becomes serious. And, as you see,
there are many energy resources that have this kind of low EROEI.
Now,
the problem of diminishing yields exists also for minerals that are not
extracted in order to produce energy. You still have to spend energy in order to
extract all minerals and, as depletion sets in, you have to use more and more
energy. That makes the resource more expensive. And there is no doubt that this
process is ongoing. You need huge amounts of energy to mine the amount of
mineral commodities that the industrial society needs. Let me just show to you
an example:

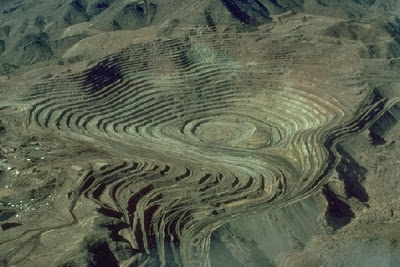

That's the Morency copper mine in Australia and you can get some idea of
the size of the operation if you note that the little white dots on the left are
buildings. This is the typical size of modern mining - and the amount of energy
that it takes is huge, too. It can be estimated that it is of the order of 10%
of the total primary energy produced in the world.
At this point, I think
you can understand the reasons of the "bell shaped" curve. Depletion is not an
"all or nothing" phenomenon. It is a gradual evolution in which mining becomes
more and more expensive; that means both in terms of energy needed and in terms
of money. As your profit gradually wane, you are left with less and less
resources to invest in further mining. So, you can't keep growing, you arrive to
a peak and then decline. Of course, there are many more factors influencing the
curve, prices, political interventions, technology, etcetera. But the core of
the model, the decline of net energy, remains a powerful factor in shaping the
production curves, which, in turn, affect the economy and generate a
global decline.
So, that's the model, where do we stand in terms of
reality? Let me show you some global data.
(from a paper by Krausmann et al, 2009
http://dx.doi.org/10.1016/j.ecolecon.2009.05.007)
These data go all the
way to 2005; from then, these trends have been maintained although growth seems
to be slowing down. But, if there has to be a peak, we are not there yet. Yet,
we have clear evidence that the world's mineral industry is under heavy stress.

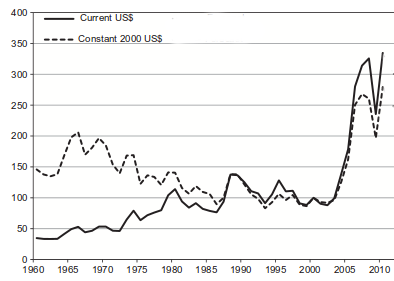

We see that mainly from price trends. So, here are some data for some selected
mineral commodities, metals which are important for the industry.
(adapted from a graphic reported by Bertram et
al., Resource Policy, 36(2011)315))

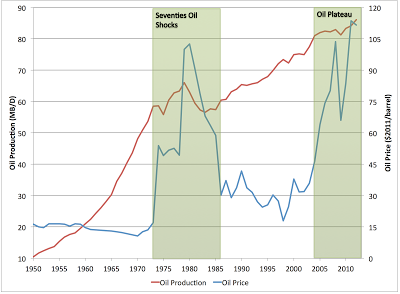

And here are some data for oil.
Here you have data for both prices and production (from the blog "Early Warning" by Stuart
Staniford.
And you see that, although we are able to manage a slightly growing
production for crude oil, we can do so only at increasingly high prices. This is
an effect of increasing energy investments in extracting difficult resources -
energy costs money, after all.
Now, some data for food. Of course, food
is not a mineral resource; although it partly is, because modern agriculture
"mines" fertile soil. But the main point is that modern agricultural production
needs energy that comes from oil, and also fertilizers and other items which are
manufactured using fossil fuels. So, if the prices of food increase because of
oil depletion and the general increase of the prices of all mineral commodities;
as you can see below:
What you see here is a big problem because we all know that the food
demand is highly anelastic - in plain words you need to eat or you die. Several
recent events in the world, such as wars and revolutions in North Africa and
Middle East have been related to these increases in food prices.
All that is rather worrisome already, but the real disaster is another
one. Despite the fact that oil production is plateauing, we don't see any
plateau in CO2 emissions. We are creating a climate disaster. As you seee from
the most recent data, CO2 are still increasing in a nearly exponential
manner
So, what I was saying at the beginning is taking place: the Limits to
Growth scenario was not supposed to become a prophecy but, unfortunately, it is
becoming one. Here are the latest calculations for the world's trajectory, made
with an updated version of the program that was used for the 1972 "The Limits to
Growth", also with updates in the historical data, of course. And,
unfortunately, it seems that we are getting closer and closer to the start of an
irreversible decline.
Let me note one thing about this figure. You see, the Club of Rome
has often been accused to be presenting only problems, not solutions. But look
at the figure above: you see what the problem is, but you also see what's the
solution. Think about that: why will we have a collapse? It is because we grew
too much. There is no escape on this fact: if you grow above the sustainability
limit then you go into what is called "overshoot" - you go over your allowable
environmental footprint. There is nothing you can do but to go back below the
limit, but in overshooting the limit you consumed resources that can't be
recreated except in a long time. So, you are condemned to decline, actually to a
rapid decline; you may call that collapse, if you like - it is the
same.
So, if overshoot is the problem, you immediately see what's the
solution can be and what it can't be. Surely it cannot be inventing some clever
gadget that produces more energy or allow you to go on without using so much. If
you produce more energy from fossil fuels, then this extra energy will be used
by someone else for some other purpose and everything remains the same -
including the production of pollution. As long as we keep saying that growth is
the solution of all economic ills, then there is nothing we can do to avoid
going in overshoot. And at some moment we'll have to pay for the consequences.
Growth is the problem; stopping growth is the solution; the only possible one.
(it may not be enough, though!)
So, the first thing that we must aim for
if we want to mitigate the problem is to slow down. Of course, that's not easy
to do, because all our political discourse, today, is based on growth. But in
the end, if we don't find a way to curb growth by our own action, then the
system itself (or "Nature") will force us to slowdown and then decline. It will
be the same thing; just a little faster and much more painful.
A
last point, but by far not the least important. In the model, the decline of the
industrial society is the result not of just depletion but of pollution as well.
It is another element of the model; with the first study of 1972, the authors
couldn't exactly pinpoint what was the main factor that generated this problem,
but now we know that it is the emission of greenhouse gases, mainly CO2. And I
don't have to tell you that climate change has an added negative twist in
comparison to resource depletion, it is what we call "tipping point". With
depletion, you can do nothing worse than running out of something. With climate
change, you can trigger a series of feedbacks that grow out of control all by
themselves. And the risk is to arrive to truly horrible amounts of damage,
including the destruction of the Earth's ecosystem.
In the end, there is
a basic point that I'd like to emphasize: climate change and resource depletion
are not two separate problems. They are two sides of the same problem. Depletion
will not save us from climate change, while climate change will not stop our
plundering of the planet.
So, I think the main problem we have is a problem of communication. You
see, in the 1970s the Club of Rome and the authors of "The Limits to Growth"
were accused of having bad models for their predictions. That was not true, but
they had made a basic mistake. They had though that their job was to state the
problem and then someone, somehow, would have done something to solve it. It
didn't work that way. Stating the problem simply led to the people who would
have been most damaged by the solution to mount a campaign designed to discredit
the Club of Rome and "The Limits to Growth" study.
That's what's
happening today with the IPCC and their climate reports. The IPCC seem to think
that their job is to present the problem and then someone will do something
about it. That doesn't work. We saw it with the Club of Rome and we are seeing
it now for the IPCC which is undergoing the same process of vilification and
demonization that wash unleashed against the club in the 1980s.
So, I
think it is not a question of lacking solutions for the twin problems of
depletion and climate change. We have solutions, and we even have excellent
solutions: both depletion and climate change are problems we create with our
actions, if we revert our action we can at least enormously reduce the size of
the problems. The point, of course, is how to do that and, at this stage, the
priority is to find an agreement that certain things are to be done. I think it
is not impossible and, in the end, you can be perfectly happy even without a big
SUV, as my friend Ms. Ruja Jankovich is showing to us in this picture.
h/t ms. Ruza Jankovich - the car
shown here is an old Fiat "500" that was produced in the 1960s and it would move
people around without the need of SUVs
____________________________________________
Acknowledgement:
The Club of Rome team
Daphne Davies
Ian Johnson
Linda
Schenk
Alexander Stefes
Joséphine von Mitschke-Collande
Karl
Wagner
And the coauthors
of the book "Plundering the Planet"
Philippe Bihouix
Colin Campbell
Stefano
Caporali
Partick Dery
Luis De Souza
Michael Dittmar
Ian
Dunlop
Toufic El Asmar
Rolf Jakobi
Jutta Gutberlet
Rui Rosa
Iorg
Schindler
Emilia Suomalainen
Marco Pagani
Karl Wagner
Werner
Zittel
Content on this site is subject to our fair use notice.
Resilience is a program of Post Carbon Institute, a nonprofit organization dedicated to helping the world transition away from fossil fuels and build sustainable, resilient communities.
